Road/Tunnel Button and Controller Unit
RTB is produced to use mainly inside the tunnels, airports, carparks and roads to establish a secure driving by indicating the sides of the roads especially at the bad weather conditions. Buttons work under the control of RTBC.
| ROAD / TUNNEL BUTTON FEATURES | |
|---|---|
| Body Material | ASA Plastic |
| Fireproof Degree | UL 94V0 |
| Dimensions / Weight | 100x105x18 mm; 150 gr |
| LED Type / Piece | 5 mm / 2 x 6 piece-pcs |
| LED Colors | Red / White / Blue / Amber / Green |
| LED Intensity | Min 10.000 mcd |
| Current Draw | 0,37 mA |
| Protection Degree | IP 68 |
| EMC | Acc. to TS EN 50293 e appropriate |
| Cable | Fireproof 1 mt |

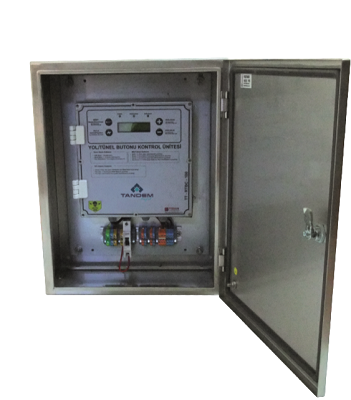

It is possible to change the illumination level and the working mode of the buttons, contiuous illumination, flashing or forward/backward running light. If controllers are used in a network system, partial flashing is also possible. Controllers may be work alone or they can be connected to each other to form a network. In a network one of the controllers became Master and the others became Slave.
| Technical Specifications | |
|---|---|
| Main Board Material / Dimensions | Stainless / 40x50x20 cm |
| Inner Box Material / Sizes | Aluminum |
| Inner Box Protection Level | IP 67 |
| Button Operation Modes | Continuous / Flash / Flows Forward and Backward |
| Embedded Flash Modes | 15 |
| Number of Output Terminals for Flow Mode | 3 |
| Maximum Number of Buttons | 75 – 115 Depending on the led current |
| Brightness Control | % 10, % 20, % 30, ….. % 100 |
| Operating Voltage | 180 – 264 V AC |
| Output Voltage (To Buttons) | 24 V DC |
| Power consumption | Nominal 50 W, Max. 72 W |
| Astronomical Timer | 81 provinces and 2 districts are buried |
| Sunrise / Sunset Offset | ± 59 minute |
| Remote Control Connection | Cable |
